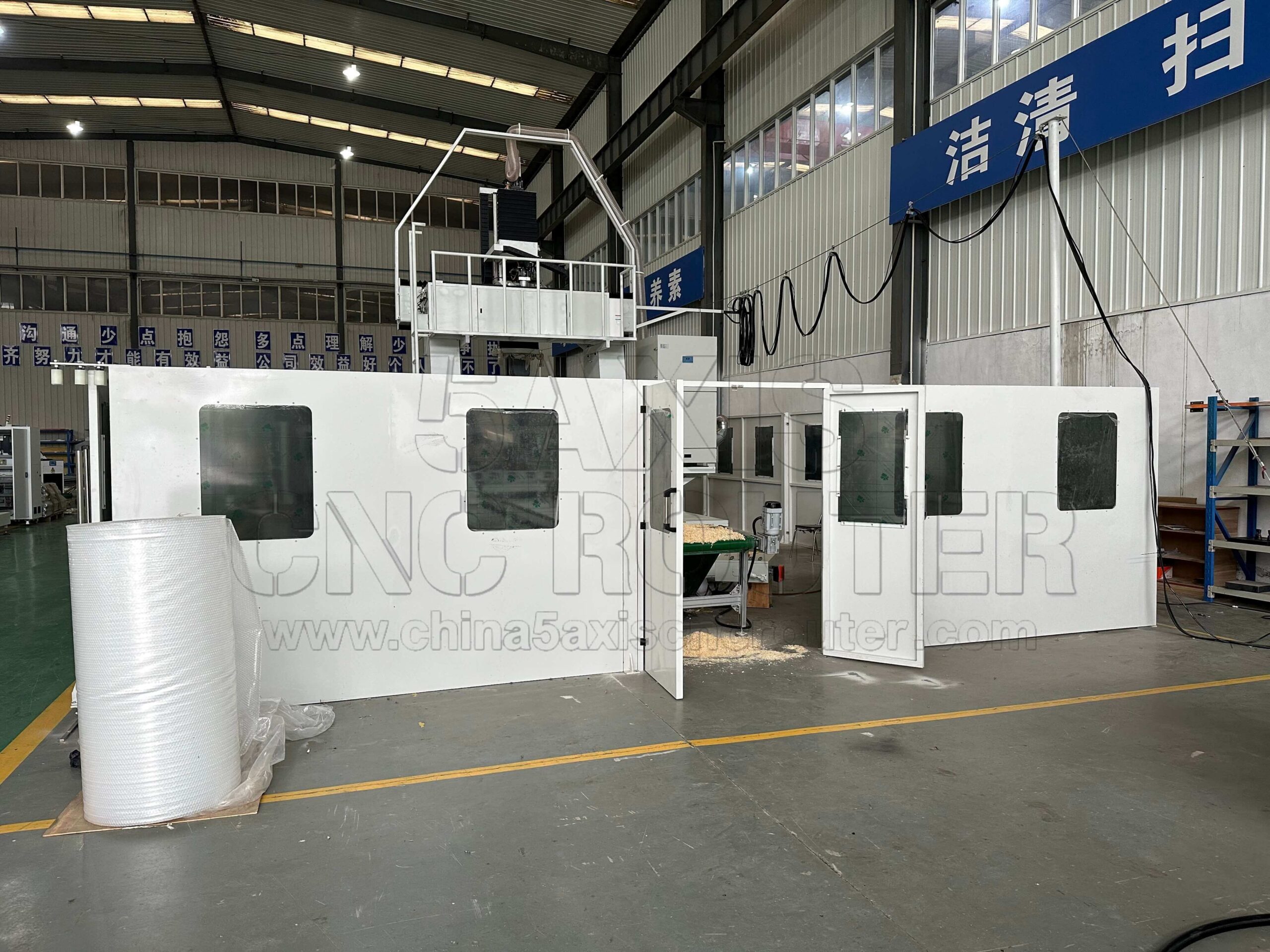

5 Axis CNC Router for Wood Beams and Door Pillar Carving

Model: AC-18180-5 Axis-TABLE
Working Size: 1800*18000*1000MM
Price Range: $85000.00 to $99500.00 / Set based on the configuration
Spindle: 10KW HITECO
Table: Vacuum Table with Gantry Move
Payment Terms: T/T(Telegraphic Transfer), Visa, Mastercard, American Express, and Discover cards
Warranty: 2 Years
Supply Ability: 30 Sets / Month

Description of 5 Axis CNC Router for Wood Beams and Door Pillar Carving

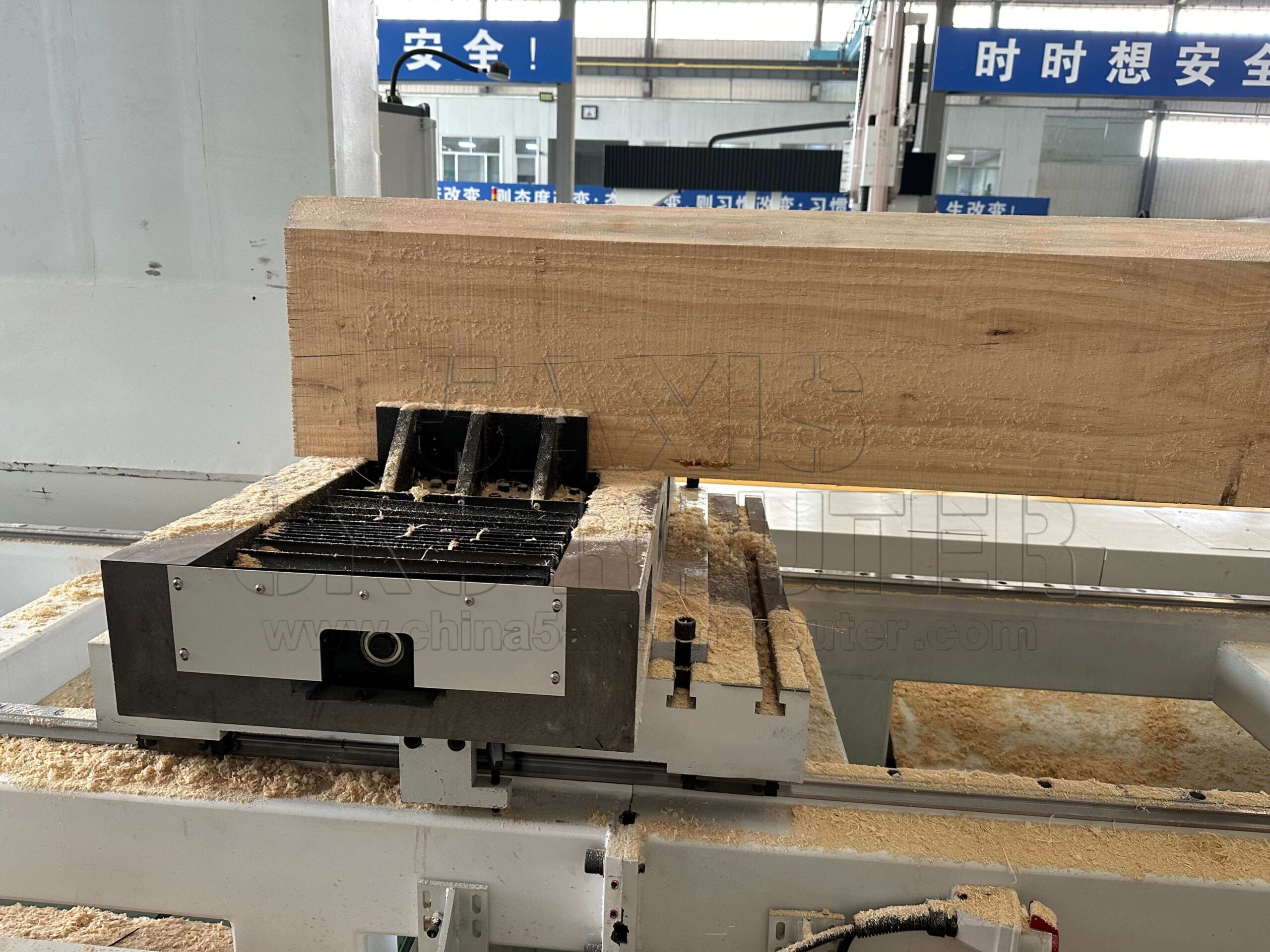

The 5-Axis CNC Router for Wooden House Beams is specially designed for processing large beams ranging from 5 to 20 meters. It is ideal for complex beam and column carvings, decorative patterns, and detailed woodwork.

Featuring advanced five-axis linkage technology, the machine allows high-precision multi-angle carving, making it perfect for long beams, roof decorations, and intricate wood patterns.

The machine’s robust structure, high-precision linear rails, and heavy-duty ball screw transmission ensure stability during long-beam processing. The rotary chuck and 5-axis CNC controller with RTCP enable complex 3D carvings, patterns, and surface detailing, improving efficiency and overall processing quality.

Features of 5 Axis CNC Router for Wood Beams and Door Pillar Carving

Designed for wooden house beams ranging from 5 to 20 meters in length.
5-axis linkage technology for high-precision multi-angle carving.
Heavy-duty frame and high-precision guide rails ensure stable long-beam processing.

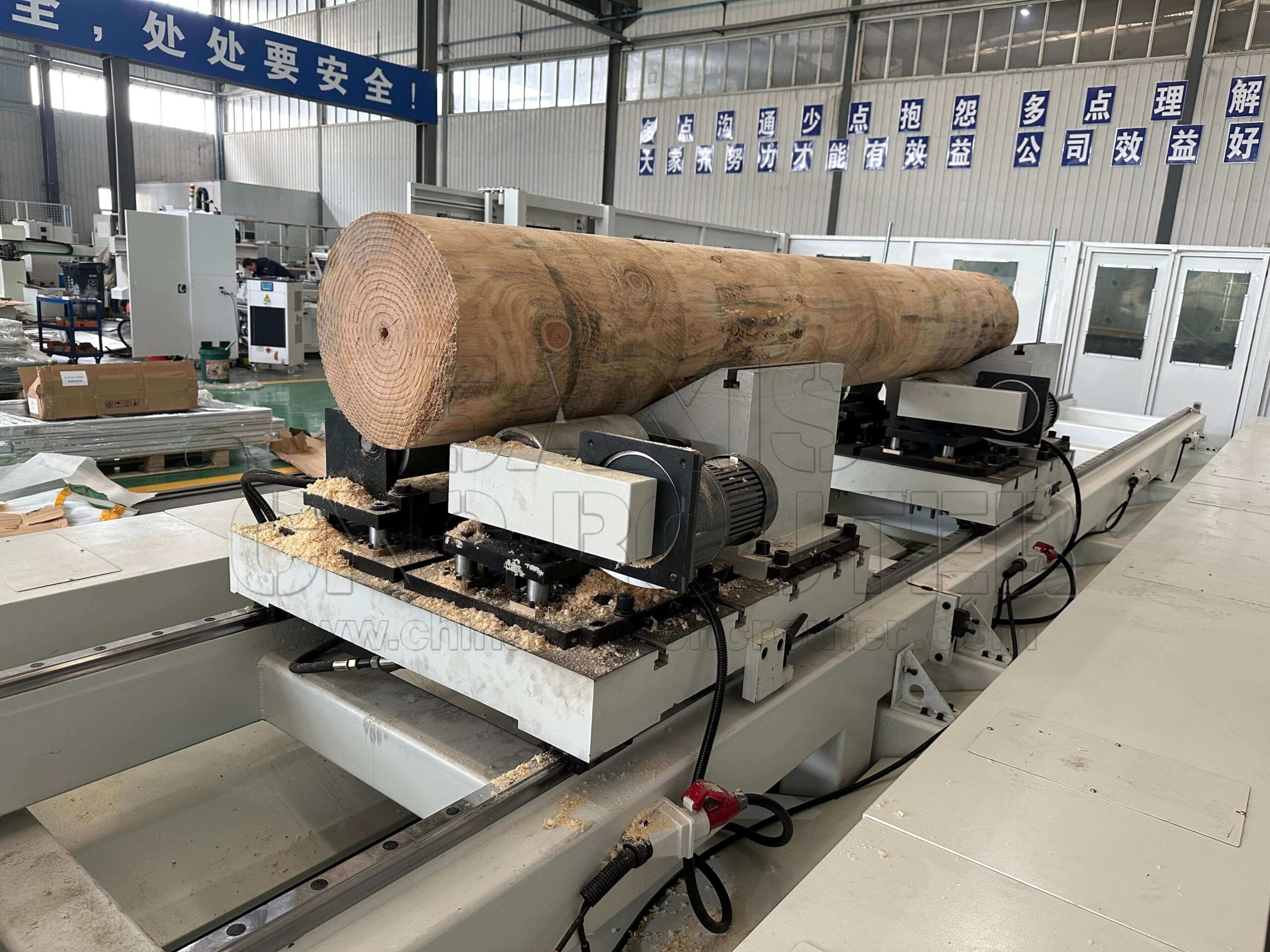

Strong rotary chuck securely clamps large beams.
Advanced 5-axis CNC controller with RTCP, user-friendly interface.
High-accuracy ball screw transmission ensures smooth, detailed carvings.
Capable of carving complex patterns, curves, and traditional woodwork designs.
Stable long-hour operation, suitable for batch production and custom projects.

Specification of 5 Axis CNC Router for Wood Beams and Door Pillar Carving

Item	Specification
Applicable Beam Length	5–20 m
Spindle Power	4.5–7.5 kW (air or water-cooled)
Spindle Speed	0–18,000 RPM
Control System	5-axis CNC controller with RTCP
Drive Motors	Hybrid servo / full servo optional
Transmission	Heavy-duty ball screw & linear guide rails
Rotary Device	Four-jaw chuck for large beams
Max Travel Speed	8,000 mm/min
Working Precision	±0.05 mm
Power Supply	AC380V / 50Hz (AC220V optional)
Supported Code	HPGL, G-code
Machine Dimensions	Customized per beam length
Packing Dimensions	Customized per beam length
Net/Gross Weight	Depends on beam length and configuration

Application of 5 Axis CNC Router for Wood Beams and Door Pillar Carving

Carving and decoration of wooden house beams.
Traditional patterns, floral designs, and 3D carvings on large beams and columns.
Wood structure decorations, including eaves, pillars, and purlins.
Custom high-end wooden structural furniture or decorative beams.
Education and training for wood carving techniques.
Batch production and customized beam processing for timber houses.
