5 Axis CNC Router Precision Tool for Complex Parts

Model: AC-40120-5 Axis-TABLE
Working Size: 4000*12000*1000MM
Price Range: $85000.00 to $99500.00 / Set based on the configuration
Spindle: 10KW HITECO
Table: Vacuum Table with Gantry Move
Payment Terms: T/T(Telegraphic Transfer), Visa, Mastercard, American Express, and Discover cards
Warranty: 2 Years
Supply Ability: 30 Sets / Month

Description of 5 Axis CNC Router Precision Tool for Complex Parts

The 5 Axis CNC Router is an advanced precision machining tool engineered for producing highly complex parts with exceptional accuracy and efficiency. Featuring full 5-axis simultaneous motion, it enables the spindle to approach the workpiece from any angle, making it ideal for creating intricate geometries, deep cavities, curved surfaces, and 3D contours that traditional 3-axis machines cannot achieve.

Built with a rigid structural design, high-performance servo drives, and a reliable control system, this machine ensures smooth motion, stable cutting, and consistent dimensional accuracy even during heavy-duty operations. It is widely used in industries such as aerospace, automotive, mold making, furniture manufacturing, and artistic sculpting. Whether working with foam, wood, resin, aluminum, or composite materials, this 5 Axis CNC Router delivers outstanding precision and flexibility, making it the perfect solution for complex part machining and high-end manufacturing applications.

Features of 5 Axis CNC Router Precision Tool for Complex Parts

Full 5-Axis Simultaneous Machining
Enables accurate processing of curved surfaces, deep cavities, undercuts, and complex 3D geometries from multiple angles in a single setup.
High-Rigidity Heavy-Duty Frame
Reinforced machine structure minimizes vibration and enhances stability, guaranteeing consistent accuracy during long-term, high-speed machining.
Advanced Servo Motion System
Equipped with high-precision servo motors for smooth, responsive movement, ensuring exact positioning and excellent contouring performance.
High-Performance ATC Spindle
Powerful automatic tool-changing spindle provides strong cutting capability and supports rapid tool changes for increased productivity.
Premium Linear Guide & Transmission Components
Uses high-accuracy linear rails, racks, and ball screws to deliver reliable movement, reduced friction, and long service life.
Large 3D Processing Envelope
Offers an extended working area to handle oversized materials and large complex part machining with ease.
Smart Control System
Equipped with an industrial CNC controller that supports 5-axis interpolation, high-speed processing, tool compensation, and user-friendly operation.
Multi-Material Cutting Capability
Designed for precision machining of foam, wood, composite materials, resin, plastic, aluminum, and other non-ferrous materials.
Efficient Dust & Chip Removal
Integrated vacuum and dust collection system improves cutting visibility, reduces cleanup time, and protects machine components.
High Accuracy & Repeatability
Engineered with tight tolerances and advanced calibration, ensuring reliable, repeatable results ideal for high-precision industries.

Specification of 5 Axis CNC Router Precision Tool for Complex Parts

No.	Item	Specification
1	Model	AC-40120-5 Axis
2	Working Area (X/Y/Z)	4000 × 12000 × 1500 mm (customizable)
3	Rotary Axes (A/C)	A-axis ±120° / C-axis ±360° continuous rotation
4	Machine Frame	Heavy-duty welded steel structure with stress-relief treatment for high rigidity
5	Worktable Type	Vacuum + T-slot multi-zone table for large-scale material clamping
6	X/Y Transmission	Helical rack-and-pinion system with Taiwan HIWIN #45 linear guide rails
7	Z Transmission	Taiwan TBI high-precision ball screws with HIWIN #35 linear rails
8	Spindle	12 kW Italy HSD or Hiteco water-cooled 5-axis spindle, HSK F63
9	Spindle Speed	6,000 – 24,000 RPM
10	Tool Changer	Automatic tool changer (linear or carousel), 12–16 tools capacity
11	Drive Motors	Japan Yaskawa / Panasonic high-precision servo motors and drivers
12	Reducer	Japan Shimpo precision gear reducer
13	Inverter	Taiwan DELTA inverter
14	CNC Control System	Taiwan Syntec 5-axis CNC controller with RTCP functionality
15	Programming Language	Standard G-code, ISO code
16	Data Interface	USB / Ethernet
17	Vacuum Pump	7.5 kW – 11 kW (Becker optional)
18	Lubrication	Automatic centralized lubrication system
19	Dust Collection	Multi-axis dust hoods and piping for efficient chip removal
20	Working Voltage	AC380V, 3-phase, 50/60Hz (Optional AC220V)
21	Rapid Travel (X/Y/Z)	40,000 mm/min (X/Y), 20,000 mm/min (Z)
22	Positioning Accuracy	±0.02 mm
23	Repeatability	±0.01 mm
24	Operating Temperature	0°C – 45°C
25	Machine Dimensions	Approx. 18,000 × 4,500 × 4,000 mm (varies by configuration)
26	Net Weight	Approx. 20,000–22,000 kg
27	Gross Weight	Approx. 22,000–24,000 kg
28

Application of 5 Axis CNC Router Precision Tool for Complex Parts

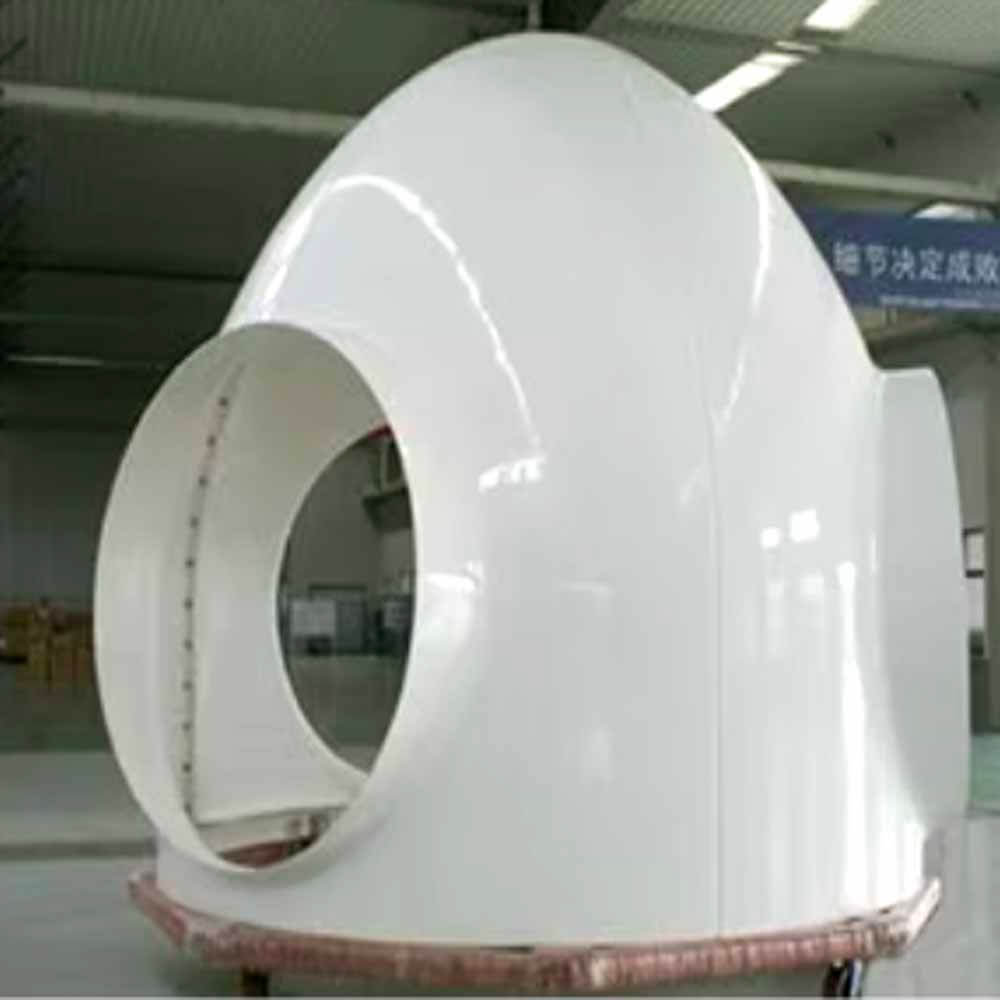

The 5 Axis CNC Router designed for precision and complex part machining is ideal for industries requiring high-accuracy, multi-dimensional work. It is widely used in aerospace for manufacturing intricate aircraft components, structural parts, and molds. In the automotive industry, it produces detailed car body molds, prototype parts, interior panels, and tooling fixtures.

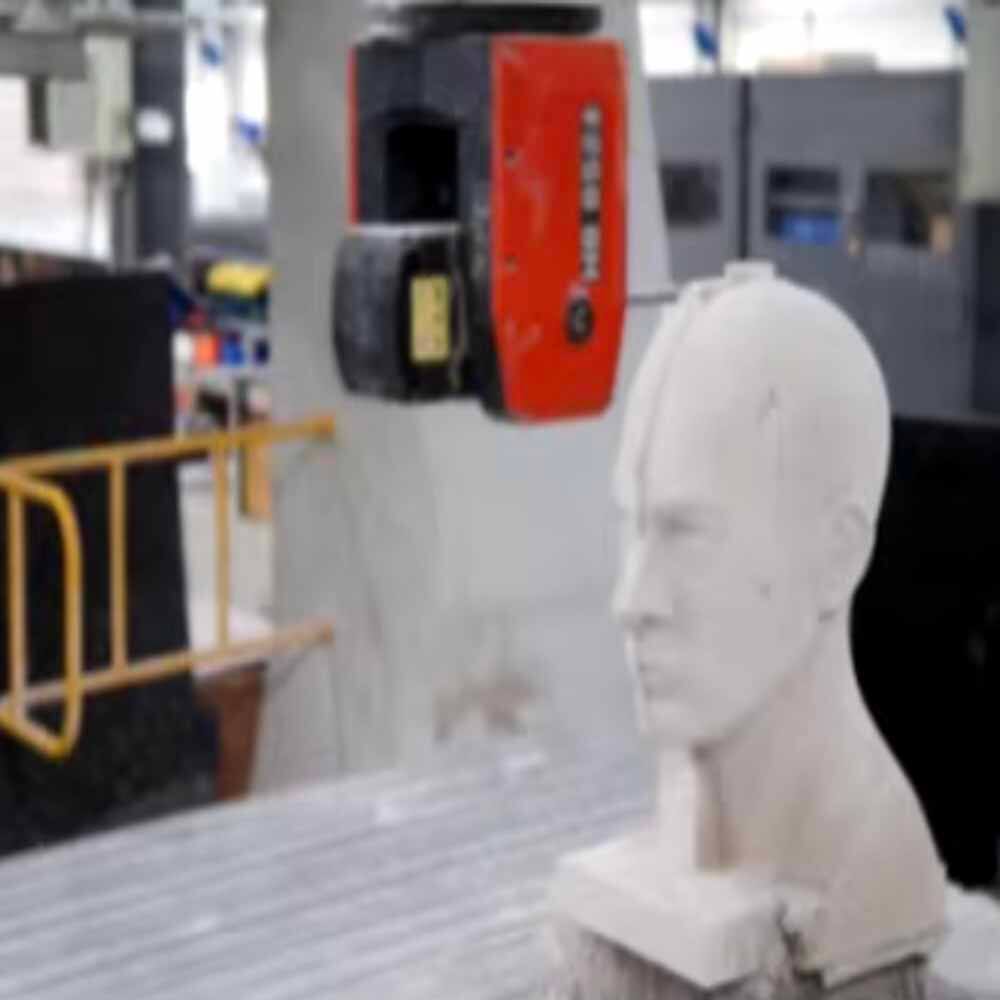

The machine is also suitable for mold making and pattern industries, handling wooden molds, resin prototypes, engineering plastic components, and foam patterns. In furniture and woodworking, it enables the creation of detailed carvings, decorative panels, cabinet doors, and 3D contoured surfaces. Additionally, it serves the artistic and signage industries, producing sculptures, 3D reliefs, advertising signage, and customized decorative elements.

Its versatility makes it perfect for machining non-metallic materials, wood, aluminum, composites, resins, and plastics, delivering precise, repeatable, and high-quality results for complex part manufacturing.
